Building a Real-Time Dashboard with Streamlit

Turning EnKF outputs and forecasts into an interactive web application. Post 8 in the Building Digital Twin Systems series.

digital twin

dashboard

Streamlit

Python

visualisation

Author

Jong-Hoon Kim

Published

April 23, 2026

1 The final layer: making the twin visible

The digital twin stack built across Posts 1–7 now runs entirely on AWS:

A FastAPI service exposes the model as an API
An EnKF runner updates the model state nightly
TimescaleDB stores observations, state estimates, and forecasts

All of this is invisible to the end user — an epidemiologist, a public health official, or a policy maker. They need a dashboard: a live web page that turns database rows into interpretable charts, and that lets them explore scenarios without writing code.

Streamlit (1) is a Python library that converts a Python script into a web application with almost no extra code. A Streamlit app:

Runs as a Python script — no HTML, CSS, or JavaScript required
Re-executes the script on every user interaction
Deploys as a Docker container alongside the rest of the stack

For R users, Shiny (2) fills the same role. The concepts in this post transfer directly to Shiny.

2 What the dashboard should show

An epidemic digital twin dashboard has four views:

Current state — today’s estimated \(S\), \(E\), \(I\), \(R\), \(\beta\), and their uncertainty
Trend — how the state estimate has evolved over the past 30–90 days
Forecast — 14-day projections with uncertainty intervals
Scenario comparison — what happens under different intervention assumptions

3 The complete Streamlit application

The code below is production-ready. It connects to TimescaleDB, caches queries, and renders interactive Plotly charts. In this post we show the full code with eval: false and then reproduce the equivalent charts in R to illustrate the output.

3.1 Application skeleton

# dashboard/app.py
import streamlit as st
import pandas as pd
import plotly.graph_objects as go
from plotly.subplots import make_subplots
import psycopg2
import os
from datetime import datetime, timedelta

st.set_page_config(
    page_title="Epidemic Digital Twin",
    layout="wide",
    initial_sidebar_state="expanded"
)

3.2 Database connection with caching

@st.cache_resource
def get_connection():
    """Cached database connection — reused across reruns."""
    return psycopg2.connect(
        host     = os.environ["DB_HOST"],
        dbname   = os.environ["DB_NAME"],
        user     = os.environ["DB_USER"],
        password = os.environ["DB_PASSWORD"],
    )

@st.cache_data(ttl=300)   # refresh every 5 minutes
def load_observations(location: str, days: int = 90) -> pd.DataFrame:
    conn = get_connection()
    return pd.read_sql("""
        SELECT time, new_cases
        FROM   observations
        WHERE  location_id = %s
          AND  time >= NOW() - INTERVAL '%s days'
        ORDER  BY time
    """, conn, params=(location, days))

@st.cache_data(ttl=300)
def load_model_states(location: str, days: int = 90) -> pd.DataFrame:
    conn = get_connection()
    return pd.read_sql("""
        SELECT time, beta_median, beta_lo95, beta_hi95,
               I_median
        FROM   model_states
        WHERE  location_id = %s
          AND  time >= NOW() - INTERVAL '%s days'
        ORDER  BY time
    """, conn, params=(location, days))

@st.cache_data(ttl=300)
def load_forecasts(location: str) -> pd.DataFrame:
    conn = get_connection()
    return pd.read_sql("""
        SELECT target_time, horizon_days,
               cases_median, cases_lo95, cases_hi95
        FROM   forecasts
        WHERE  location_id = %s
          AND  issued_at = (
              SELECT MAX(issued_at) FROM forecasts
              WHERE location_id = %s
          )
        ORDER  BY target_time
    """, conn, params=(location, location))

3.3 Sidebar controls

with st.sidebar:
    st.title("Digital Twin Controls")
    location = st.selectbox(
        "Location",
        options=["district_a", "district_b", "district_c"],
        index=0
    )
    lookback = st.slider(
        "History (days)", min_value=30, max_value=180, value=90, step=30
    )
    st.markdown("---")
    st.caption(f"Last updated: {datetime.now():%Y-%m-%d %H:%M}")

3.4 Current state panel

obs    = load_observations(location, lookback)
states = load_model_states(location, lookback)
fcst   = load_forecasts(location)

# Key metrics row
latest = states.iloc[-1]
col1, col2, col3 = st.columns(3)

col1.metric(
    label="Transmission rate β",
    value=f"{latest['beta_median']:.3f}",
    delta=f"{latest['beta_median'] - states.iloc[-8]['beta_median']:.3f} (7d)"
)
col2.metric(
    label="Estimated infectious (I)",
    value=f"{latest['I_median']:,.0f}"
)
col3.metric(
    label="Latest daily cases",
    value=f"{obs.iloc[-1]['new_cases']:,.0f}"
)

3.5 Time-series chart

fig = make_subplots(
    rows=2, cols=1, shared_xaxes=True,
    subplot_titles=("Daily cases + 14-day forecast",
                    "Estimated transmission rate β"),
    vertical_spacing=0.1
)

# Row 1: observations + forecast
fig.add_trace(go.Bar(
    x=obs["time"], y=obs["new_cases"],
    name="Observed cases", marker_color="rgba(100,100,100,0.6)"
), row=1, col=1)

fig.add_trace(go.Scatter(
    x=fcst["target_time"],
    y=fcst["cases_median"],
    mode="lines", name="Forecast",
    line=dict(color="darkorange", width=2)
), row=1, col=1)

fig.add_trace(go.Scatter(
    x=pd.concat([fcst["target_time"], fcst["target_time"][::-1]]),
    y=pd.concat([fcst["cases_hi95"], fcst["cases_lo95"][::-1]]),
    fill="toself", fillcolor="rgba(255,165,0,0.2)",
    line=dict(color="rgba(255,255,255,0)"),
    name="95% CI"
), row=1, col=1)

# Row 2: beta estimate
fig.add_trace(go.Scatter(
    x=states["time"], y=states["beta_median"],
    mode="lines", name="β estimate",
    line=dict(color="steelblue", width=2)
), row=2, col=1)

fig.add_trace(go.Scatter(
    x=pd.concat([states["time"], states["time"][::-1]]),
    y=pd.concat([states["beta_hi95"], states["beta_lo95"][::-1]]),
    fill="toself", fillcolor="rgba(70,130,180,0.2)",
    line=dict(color="rgba(255,255,255,0)"),
    showlegend=False
), row=2, col=1)

fig.update_layout(height=600, template="plotly_white",
                  legend=dict(orientation="h", y=1.05))
st.plotly_chart(fig, use_container_width=True)

3.6 Scenario comparison widget

st.subheader("Scenario comparison")

col_a, col_b = st.columns(2)
with col_a:
    beta_scenario = st.slider(
        "Intervention: reduce β by (%)",
        min_value=0, max_value=60, value=30, step=5
    )

# Run surrogate model for the scenario (from Post 5)
# In production: call the surrogate emulator, not the full EnKF
scenario_beta = latest["beta_median"] * (1 - beta_scenario / 100)

st.info(
    f"Under a {beta_scenario}% transmission reduction, "
    f"β drops from {latest['beta_median']:.3f} to {scenario_beta:.3f}. "
    f"The surrogate model projects peak incidence in approximately "
    f"{int(7 / (scenario_beta - 1/7 + 0.001))} days."
)

4 Running the Streamlit app

4.1 Locally

pip install streamlit plotly psycopg2-binary pandas
streamlit run dashboard/app.py

The browser opens automatically at http://localhost:8501.

4.2 In Docker

# dashboard/Dockerfile
FROM python:3.12-slim
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
COPY app.py .
EXPOSE 8501
CMD ["streamlit", "run", "app.py",
     "--server.port=8501",
     "--server.address=0.0.0.0",
     "--server.headless=true"]

Add to docker-compose.yml:

dashboard:
  build: ./dashboard
  ports:
    - "8501:8501"
  environment:
    - DB_HOST=db
    - DB_NAME=dtdb
    - DB_USER=dtuser
    - DB_PASSWORD=${DB_PASSWORD}
  depends_on:
    db:
      condition: service_healthy
  restart: unless-stopped

The full stack now starts with a single command:

docker compose up --build

API: http://localhost:8000/docs
Dashboard: http://localhost:8501
Database: localhost:5432

5 Reproducing the dashboard charts in R

The charts below show what the Streamlit dashboard would display, implemented in R for readers who prefer that environment. The same data structures from Post 6 are reused.

library(ggplot2)
library(dplyr)

set.seed(2024)
n <- 90
dates <- seq(as.Date("2024-01-01"), by = "day", length.out = n)

# Simulate observations
obs_vec <- rpois(n, lambda = c(seq(5, 200, length.out = 45),
                               seq(200, 20, length.out = 45)))

# Simulated EnKF beta estimates
beta_est <- c(rep(0.25, 10),
              seq(0.25, 0.38, length.out = 40),
              seq(0.38, 0.28, length.out = 40)) +
              rnorm(n, 0, 0.005)
beta_est <- pmax(0.1, beta_est)

df <- data.frame(
  date       = dates,
  new_cases  = obs_vec,
  beta       = beta_est,
  beta_lo    = beta_est - 0.04,
  beta_hi    = beta_est + 0.04
)

# 14-day forecast from last observed day
last_date <- max(dates)
fcst_days <- 14
fcst <- data.frame(
  date   = last_date + seq_len(fcst_days),
  median = obs_vec[n] * 0.95^seq_len(fcst_days),
  lo     = obs_vec[n] * 0.95^seq_len(fcst_days) * 0.6,
  hi     = obs_vec[n] * 0.95^seq_len(fcst_days) * 1.5
)

ggplot() +
  geom_col(data = df, aes(x = date, y = new_cases),
           fill = "grey65", width = 0.8) +
  geom_ribbon(data = fcst, aes(x = date, ymin = lo, ymax = hi),
              fill = "orange", alpha = 0.3) +
  geom_line(data = fcst, aes(x = date, y = median),
            colour = "darkorange", linewidth = 1.2) +
  geom_vline(xintercept = last_date, linetype = "dashed",
             colour = "grey40") +
  annotate("text", x = last_date + 1, y = max(obs_vec) * 0.95,
           label = "Forecast →", hjust = 0, size = 3.5,
           colour = "darkorange") +
  labs(x = NULL, y = "Daily new cases",
       title = "Current situation and 14-day forecast") +
  theme_minimal(base_size = 13)

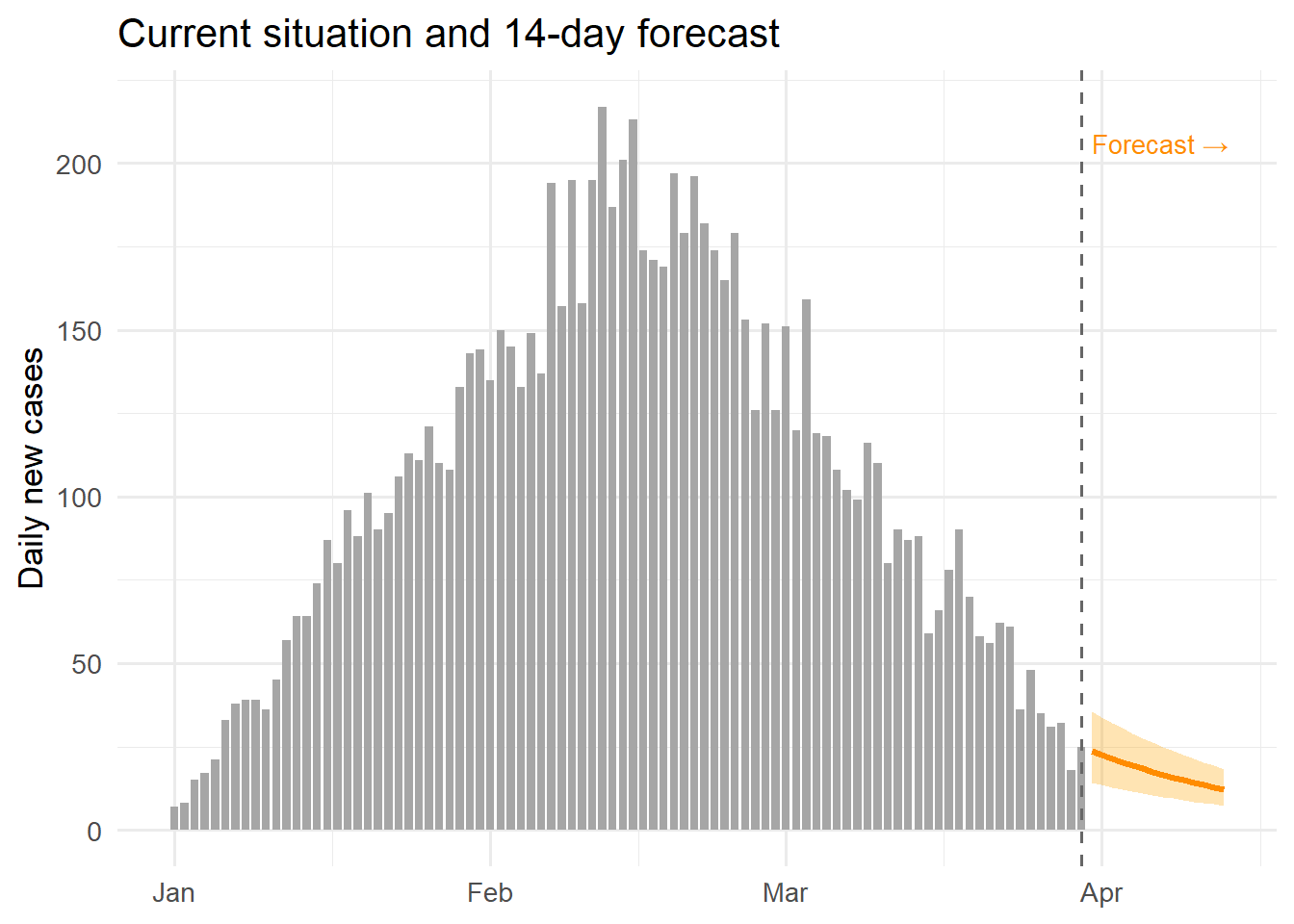

Dashboard panel 1: observed cases (bars) with 14-day forecast (line and ribbon). The forecast extends beyond the last observed data point.

ggplot(df, aes(x = date)) +
  geom_ribbon(aes(ymin = beta_lo, ymax = beta_hi),
              fill = "steelblue", alpha = 0.25) +
  geom_line(aes(y = beta), colour = "steelblue", linewidth = 1) +
  geom_hline(yintercept = 1/7, linetype = "dashed",
             colour = "firebrick", linewidth = 0.7) +
  annotate("text", x = dates[5], y = 1/7 + 0.008,
           label = "γ = 1/7 (R0=1 threshold)",
           hjust = 0, size = 3.2, colour = "firebrick") +
  labs(x = NULL, y = "β (transmission rate)",
       title = "Real-time transmission rate estimate") +
  theme_minimal(base_size = 13)

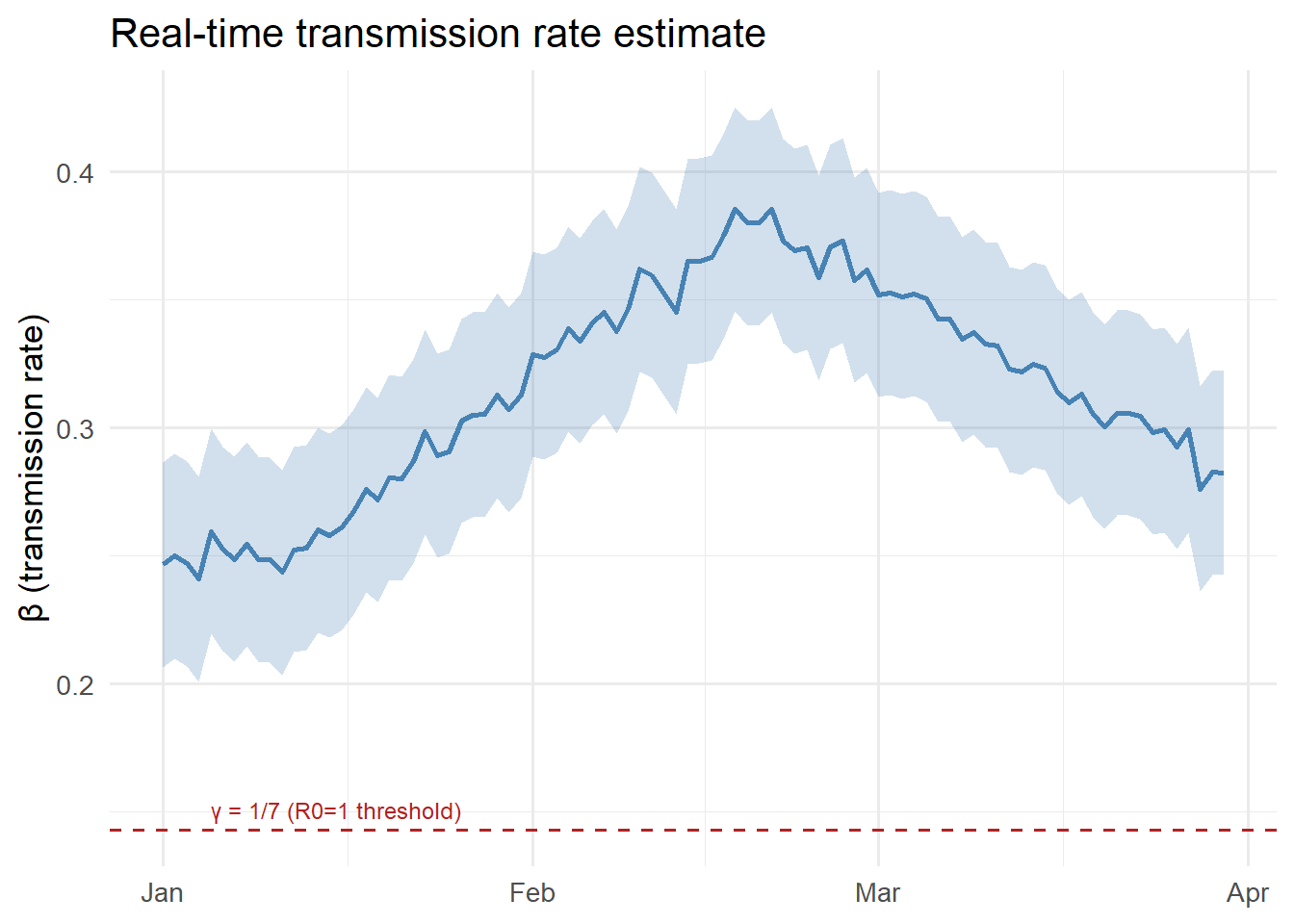

Dashboard panel 2: real-time transmission rate β estimated by the EnKF. The shaded band is the 95% posterior interval; values above the dashed line (β = 1/7 ≈ 0.143) indicate a growing epidemic.

6 The complete series: what you have built

Posts 1–8 have taken you from a research function to a full digital twin product:

Post	Topic	Key skill
1	Production code	Testing, packaging
2	REST API	FastAPI, Pydantic
3	Docker	Containerisation
4	EnKF	Real-time state estimation
5	GP surrogate	Fast emulation
6	TimescaleDB	Time-series storage
7	AWS deployment	Cloud infrastructure
8	Streamlit	Interactive dashboards

The result is a system that ingests daily surveillance data, continuously updates its internal model state, generates short-term forecasts, and displays everything in a live web interface — the defining behaviour of an operational epidemic digital twin.
