Simulating Correlated Outbreak Parameters Using Copulas

Author

Jong-Hoon Kim

Published

July 25, 2025

I wanted to simulate synthetic outbreaks based on realistic distributions for the following three parameters:

\(t_{\text{peak}}\): Time to peak (weeks after outbreak start)
\(I_{\text{peak}}\): Peak weekly incidence (number of cases)
\(D\): Total outbreak duration (in weeks)

These parameters are typically right-skewed, strictly positive, and correlated. A naive approach that samples each parameter independently fails to capture their interdependencies. Instead, we can use a copula-based approach to model their joint distribution realistically.

In this post, we will:

Explain copulas and how they help capture correlations between different distributions.
Simulate fake outbreak parameter data using a Gaussian copula.
Fit a hierarchical Bayesian copula model using rstan.

1 What is a Copula?

A copula is a multivariate distribution that allows us to model dependence structures separately from marginal distributions. Given random variables \(X_1, X_2, X_3\) with different marginal distributions (e.g., log-normal, negative binomial, gamma), a copula binds them together using their ranks (uniform CDF values).

The Gaussian copula uses a multivariate normal distribution on the inverse CDF-transformed variables:

\[ Z_i = \Phi^{-1}(F_i(X_i)) \]

Then the joint density is:

\[ C(u_1, u_2, u_3) = \Phi_\Sigma(\Phi^{-1}(u_1), \Phi^{-1}(u_2), \Phi^{-1}(u_3)) \]

This allows us to flexibly model each margin while preserving their empirical correlation.

2 Step 1: Simulate Fake Data

We simulate fake outbreaks with sparse group-level data. Each group has its own mean parameters, and only a few observations per group.

Code

library(tidyverse)
library(rstan)
rstan_options(auto_write = TRUE)
options(mc.cores = parallel::detectCores())
set.seed(123)

# Global parameters
G <- 10
mu_t0 <- log(5)
mu_I0 <- log(20)
mu_D0 <- log(15)
sigma_mu_t <- 0.4
sigma_mu_I <- 0.6
sigma_mu_D <- 0.4
sigma_t <- 0.5
phi_I <- 0.3
shape_D <- 4

# Copula correlation matrix
R <- matrix(c(1, 0.4, 0.5, 0.4, 1, 0.6, 0.5, 0.6, 1), 3, 3)
L <- chol(R)

mu_t_g <- rnorm(G, mu_t0, sigma_mu_t)
mu_I_g <- rnorm(G, mu_I0, sigma_mu_I)
mu_D_g <- rnorm(G, mu_D0, sigma_mu_D)

out_list <- vector("list", G)
for (g in seq_len(G)) {
  n_g <- rpois(1, 3) + 1
  dat <- tibble()
  while (nrow(dat) < n_g) {
    z <- t(L) %*% rnorm(3)
    u <- pnorm(z)
    t_pk <- max(1L, round(qlnorm(u[1], mu_t_g[g], sigma_t)))
    I_pk <- max(1L, qnbinom(u[2], size = 1/phi_I, mu = exp(mu_I_g[g])))
    rate_D <- shape_D / exp(mu_D_g[g])
    D <- max(t_pk, round(qgamma(u[3], shape_D, rate_D)))
    dat <- bind_rows(dat, tibble(grp = g, t_peak = t_pk, I_peak = I_pk, D = D))
  }
  out_list[[g]] <- dat
}
df <- bind_rows(out_list) %>% mutate(grp = factor(grp))
glimpse(df)

Rows: 40
Columns: 4
$ grp    <fct> 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 5, 5, 5, 6, …
$ t_peak <dbl> 2, 6, 1, 2, 4, 4, 4, 4, 10, 5, 6, 12, 11, 2, 4, 3, 4, 4, 7, 6, …
$ I_peak <dbl> 18, 42, 8, 35, 67, 15, 25, 43, 13, 26, 54, 46, 37, 19, 28, 16, …
$ D      <dbl> 5, 12, 3, 10, 8, 14, 13, 15, 16, 16, 7, 16, 11, 5, 10, 7, 9, 5,…

3 Step 2: Prepare Data for Stan

Code

stan_data <- list(
  N = nrow(df),
  G = nlevels(df$grp),
  g = as.integer(df$grp),
  t_pk = df$t_peak,
  I_pk = df$I_peak,
  Dur = df$D
)

4 Step 3: Write Stan Model to File

Code

stan_code <- "
data {
  int<lower=1> N;
  int<lower=1> G;
  int<lower=1,upper=G> g[N];
  vector<lower=0>[N] t_pk;
  int<lower=1> I_pk[N];
  vector<lower=0>[N] Dur;
}
parameters {
  real mu_t0;         real mu_I0;          real mu_D0;
  real<lower=0> sigma_mu_t;   real<lower=0> sigma_mu_I;  real<lower=0> sigma_mu_D;
  vector[G] mu_t_raw; vector[G] mu_I_raw;  vector[G] mu_D_raw;

  real<lower=0> sigma_t;
  real<lower=0> phi_I;
  real<lower=0> shape_D;        real<lower=0> rate_D;

  cholesky_factor_corr[3] L_corr;
}
transformed parameters {
  vector[G] mu_t = mu_t0 + sigma_mu_t * mu_t_raw;
  vector[G] mu_I = mu_I0 + sigma_mu_I * mu_I_raw;
  vector[G] mu_D = mu_D0 + sigma_mu_D * mu_D_raw;
}
model {
  // Hyper-priors
  mu_t0 ~ normal(log(5), 1.5);
  mu_I0 ~ normal(log(20), 2);
  mu_D0 ~ normal(log(15), 1.5);
  sigma_mu_t ~ exponential(1);
  sigma_mu_I ~ exponential(1);
  sigma_mu_D ~ exponential(1);
  mu_t_raw ~ normal(0,1);
  mu_I_raw ~ normal(0,1);
  mu_D_raw ~ normal(0,1);

  sigma_t  ~ exponential(1);
  phi_I    ~ exponential(1);
  shape_D  ~ gamma(2,0.1);
  rate_D   ~ gamma(2,0.1);
  L_corr   ~ lkj_corr_cholesky(2);

  // Likelihood with Gaussian copula
  for (n in 1:N) {
    int g_n = g[n];
    real mu_tn = mu_t[g_n];
    real mu_In = exp(mu_I[g_n]);
    real mu_Dn = exp(mu_D[g_n]);

    // Marginal log-densities
    target += lognormal_lpdf(t_pk[n] | mu_tn, sigma_t);
    target += neg_binomial_2_lpmf(I_pk[n] | mu_In, 1/phi_I);
    target += gamma_lpdf(Dur[n] | shape_D, rate_D);

    // Copula part
    real u1 = lognormal_cdf(t_pk[n], mu_tn, sigma_t);
    real F_lo = neg_binomial_2_cdf(I_pk[n]-1, mu_In, 1/phi_I);
    real F_hi = neg_binomial_2_cdf(I_pk[n], mu_In, 1/phi_I);
    real u2 = 0.5*(F_lo + F_hi);             // mid-CDF for discrete NB
    real u3 = gamma_cdf(Dur[n], shape_D, rate_D);

    vector[3] z;
    z[1] = inv_Phi(u1);
    z[2] = inv_Phi(u2);
    z[3] = inv_Phi(u3);

    target += multi_normal_cholesky_lpdf(z | rep_vector(0,3), L_corr)
              - normal_lpdf(z[1] | 0,1) - normal_lpdf(z[2] | 0,1)
              - normal_lpdf(z[3] | 0,1);
  }
}
"
writeLines(stan_code, "copula_hier.stan")

5 Step 4: Compile and Sample

Code

mod <- stan_model("copula_hier.stan")
fit <- sampling(mod, data = stan_data,
                chains = 4, iter = 1500, warmup = 750,
                seed = 2025,
                control = list(adapt_delta = 0.9))

print(fit, pars = c("mu_t0","mu_I0","mu_D0",
                    "sigma_t","phi_I","shape_D","rate_D"))

Inference for Stan model: anon_model.
4 chains, each with iter=1500; warmup=750; thin=1;
post-warmup draws per chain=750, total post-warmup draws=3000.

        mean se_mean   sd  2.5%  25%  50%  75% 97.5% n_eff Rhat
mu_t0   1.52    0.00 0.17  1.19 1.41 1.52 1.63  1.88  1231    1
mu_I0   3.18    0.01 0.33  2.52 2.97 3.17 3.37  3.84   743    1
mu_D0   2.73    0.02 1.44 -0.03 1.74 2.72 3.71  5.47  5547    1
sigma_t 0.59    0.00 0.08  0.45 0.53 0.58 0.63  0.77  1470    1
phi_I   0.27    0.00 0.08  0.15 0.22 0.26 0.32  0.45  2711    1
shape_D 3.28    0.01 0.62  2.18 2.84 3.23 3.67  4.59  1970    1
rate_D  0.25    0.00 0.05  0.16 0.21 0.24 0.28  0.35  1966    1

Samples were drawn using NUTS(diag_e) at Fri Jul 25 16:08:17 2025.
For each parameter, n_eff is a crude measure of effective sample size,
and Rhat is the potential scale reduction factor on split chains (at
convergence, Rhat=1).

Using copulas allows us to flexibly simulate and estimate correlated epidemiological parameters without assuming a joint normal distribution. This approach can be extended to include additional outbreak features (e.g., start week, region, climate covariates) and can be combined with downstream simulations for vaccine impact or ORI strategies.

6 Step 5: Compare Posterior Estimates vs. True Values

Code

posterior <- rstan::extract(fit)

# Compare global means
cbind(
  true = c(mu_t0, mu_I0, mu_D0),
  posterior_mean = c(mean(posterior$mu_t0),
                     mean(posterior$mu_I0),
                     mean(posterior$mu_D0)),
  posterior_median = c(median(posterior$mu_t0),
                     median(posterior$mu_I0),
                     median(posterior$mu_D0)),
  posterior_25 = c(quantile(posterior$mu_t0, probs=c(0.25)),
                     quantile(posterior$mu_I0, probs=c(0.25)),
                     quantile(posterior$mu_D0, probs=c(0.25))),
  posterior_75 = c(quantile(posterior$mu_t0, probs=c(0.75)),
                     quantile(posterior$mu_I0, probs=c(0.75)),
                     quantile(posterior$mu_D0, probs=c(0.75))))

        true posterior_mean posterior_median posterior_25 posterior_75
25% 1.609438       1.521474         1.520701     1.411450     1.625936
25% 2.995732       3.176480         3.166717     2.974919     3.366913
25% 2.708050       2.725390         2.716608     1.742690     3.712502

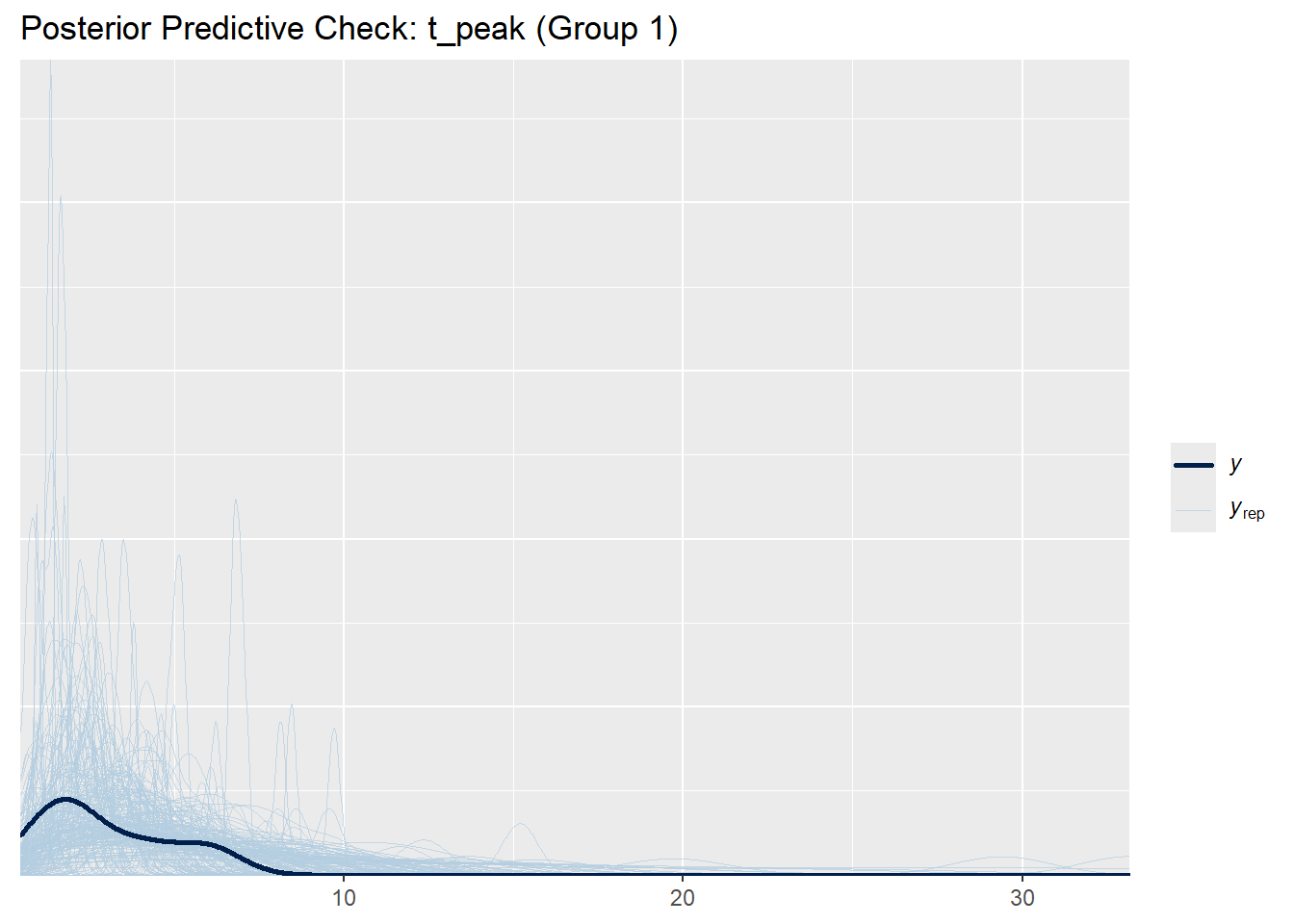

7 Step 6: Posterior Predictive Checks

Code

library(bayesplot)

set.seed(42)
draw_ids <- sample(seq_along(posterior$sigma_t), size = 200)
g <- 1  # choose group

obs_t <- df$t_peak[df$grp == g]
n_obs <- length(obs_t)

# Simulate 200 posterior predictive replicates for each obs
yrep_t <- matrix(NA, nrow = length(draw_ids), ncol = n_obs)

for (i in seq_along(draw_ids)) {
  idx <- draw_ids[i]
  mu <- posterior$mu_t[idx, g]
  sigma <- posterior$sigma_t[idx]
  yrep_t[i, ] <- rlnorm(n_obs, meanlog = mu, sdlog = sigma)
}

ppc_dens_overlay(y = obs_t, yrep = yrep_t) +
  ggtitle("Posterior Predictive Check: t_peak (Group 1)")

8 Step 7: Generate Posterior Samples for t_peak, I_peak, and D

Code

# Draw 1000 posterior predictive samples
posterior_draws <- tibble(
  t_peak = apply(posterior$mu_t, 1, function(mu) rlnorm(1, mu[1], posterior$sigma_t[1])),
  I_peak = apply(posterior$mu_I, 1, function(mu) rnbinom(1, mu = exp(mu[1]), size = 1/posterior$phi_I[1])),
  D      = apply(posterior$mu_D, 1, function(mu) rgamma(1, shape = posterior$shape_D[1], rate = posterior$rate_D[1]))
)

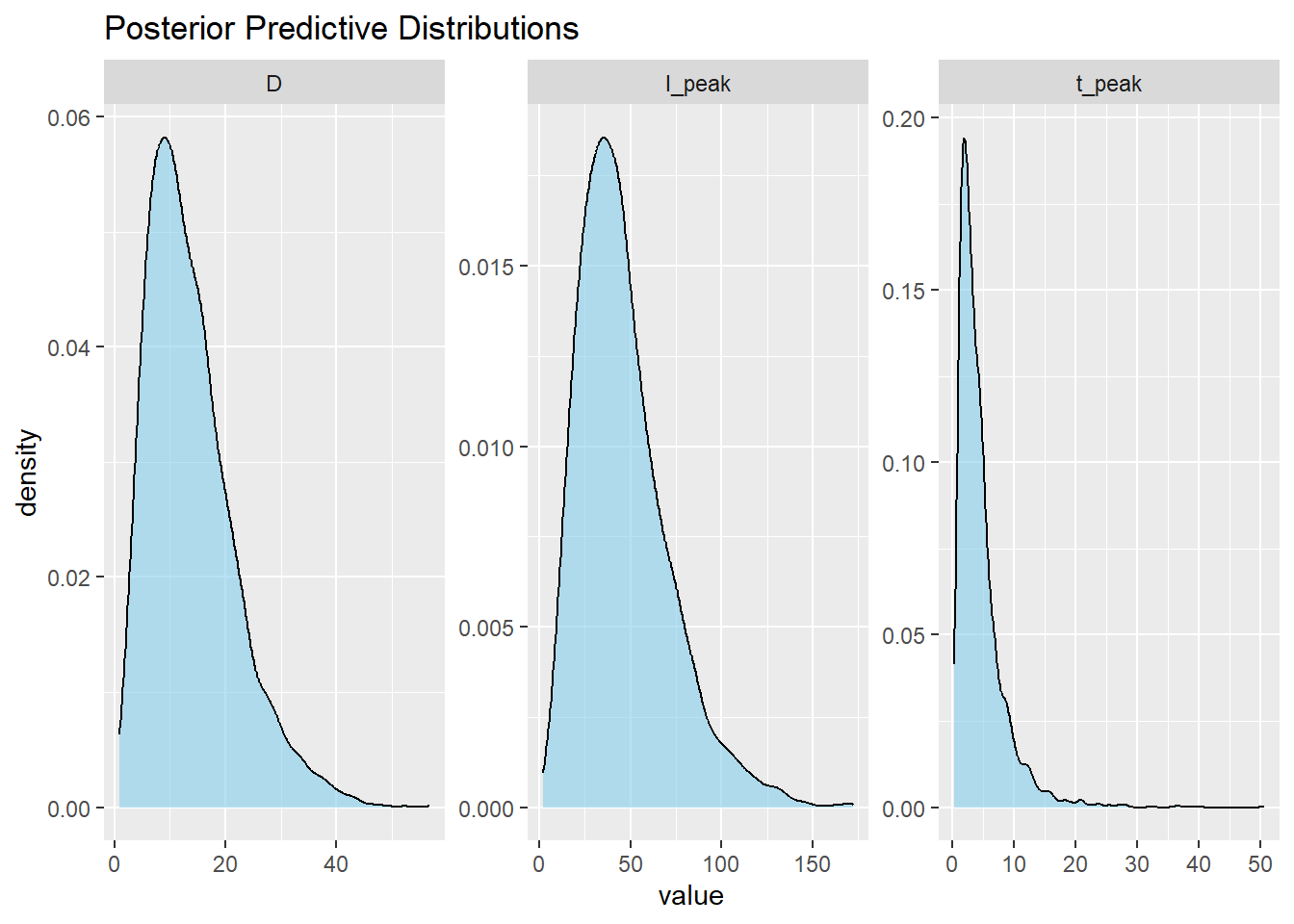

# Visualize
posterior_draws |>
  pivot_longer(everything()) |>
  ggplot(aes(value)) +
  geom_density(fill = "skyblue", alpha = 0.6) +
  facet_wrap(~name, scales = "free") +
  labs(title = "Posterior Predictive Distributions")
