Multi-Tenant Architecture: Serving Multiple Health Departments on One Platform

Row-level security, schema isolation, and cost allocation across clients who must not see each other’s data. Skill 11 of 20.

business skills

multi-tenancy

database

architecture

software engineering

Author

Jong-Hoon Kim

Published

April 24, 2026

1 The scaling inflection point

Your first client is running on a dedicated instance — one database, one API container. You sign a second client. Do you:

Option A: Clone the entire stack — two separate databases, two API deployments, two sets of infrastructure.

Option B: Add a tenant_id column to every table and run everything on shared infrastructure.

Option A is simple but costs 2× at two clients, 10× at ten. Option B is a multi-tenant architecture (1,2): shared infrastructure, logically isolated data. It is the model used by every successful SaaS business.

2 Three isolation models

library(ggplot2)

df <- data.frame(
  model      = c("Shared table\n+ RLS", "Schema per\ntenant",
                 "Database per\ntenant"),
  cost       = c(1, 2, 4),
  isolation  = c(2, 3.5, 5),
  label_cost = c("Lowest cost\nHighest density", "Medium cost",
                 "Highest cost\nFull isolation")
)

ggplot(df, aes(x = cost, y = isolation)) +
  geom_point(size = 6, colour = "steelblue") +
  geom_text(aes(label = model), vjust = -1, size = 3.5) +
  geom_text(aes(label = label_cost), vjust = 2.5, size = 2.8,
            colour = "grey50") +
  scale_x_continuous(name = "Infrastructure cost (relative)",
                     limits = c(0.5, 5)) +
  scale_y_continuous(name = "Data isolation strength",
                     limits = c(1, 6)) +
  labs(title = "Multi-tenancy isolation models") +
  theme_minimal(base_size = 13)

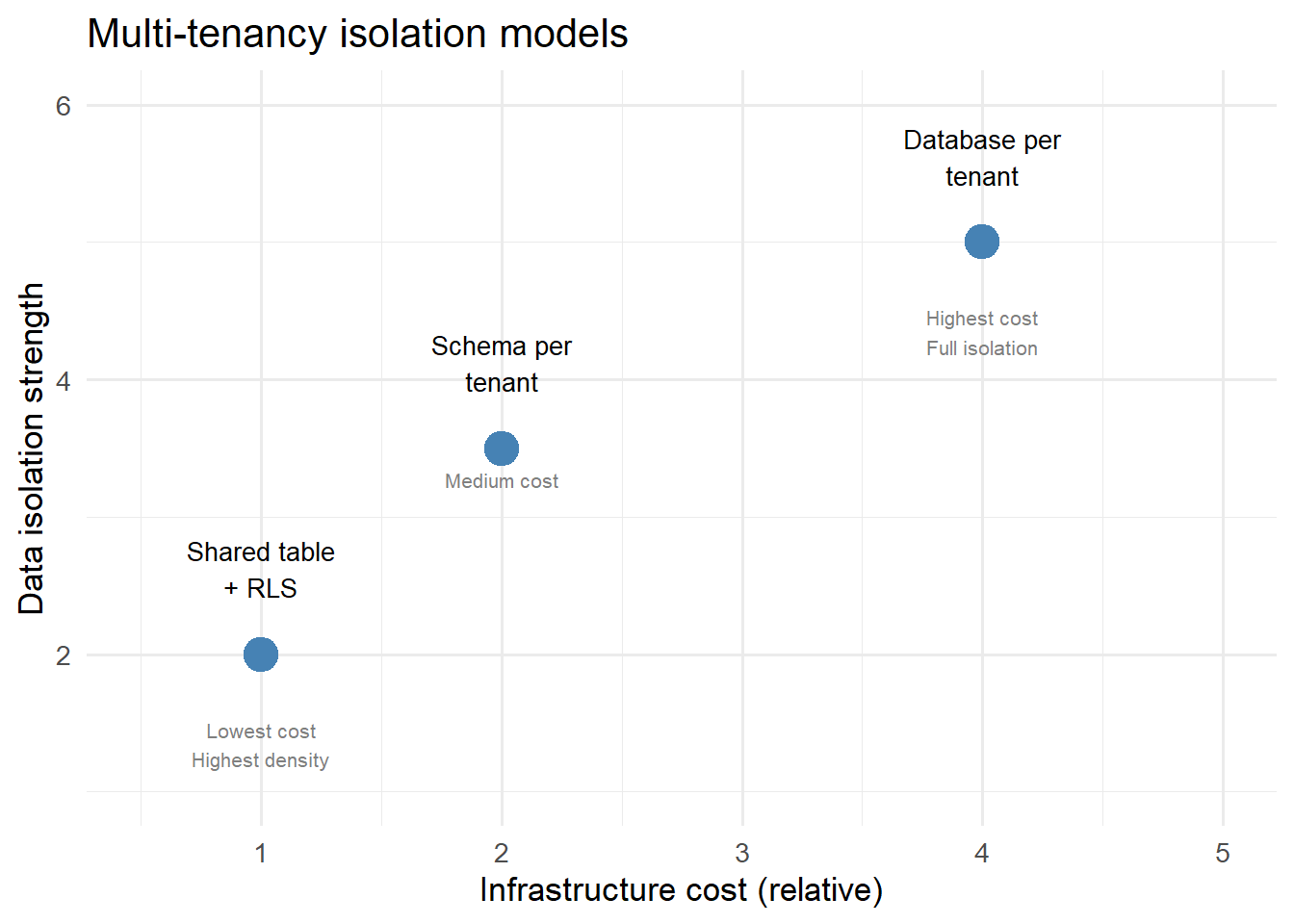

Three multi-tenancy isolation models on the security vs. cost spectrum. Most digital twin businesses start at Row-Level Security and move to Schema Isolation if compliance requires it.

3 Row-Level Security in PostgreSQL

The recommended starting point: add tenant_id to every table, then use PostgreSQL’s Row-Level Security (RLS) to enforce that each database session can only see its own tenant’s rows.

-- 1. Add tenant_id to existing tables
ALTER TABLE observations  ADD COLUMN tenant_id TEXT NOT NULL;
ALTER TABLE model_states  ADD COLUMN tenant_id TEXT NOT NULL;
ALTER TABLE forecasts     ADD COLUMN tenant_id TEXT NOT NULL;

-- 2. Enable RLS on each table
ALTER TABLE observations  ENABLE ROW LEVEL SECURITY;
ALTER TABLE model_states  ENABLE ROW LEVEL SECURITY;
ALTER TABLE forecasts     ENABLE ROW LEVEL SECURITY;

-- 3. Create policy: session variable must match tenant_id
CREATE POLICY tenant_isolation ON observations
  USING (tenant_id = current_setting('app.current_tenant'));

CREATE POLICY tenant_isolation ON model_states
  USING (tenant_id = current_setting('app.current_tenant'));

-- 4. Set the tenant on connection
SET app.current_tenant = 'district_health_dept';
-- Now ALL queries on this connection see only that tenant's data

The API sets the tenant variable from the JWT claim before executing any query. Each database connection is locked to one tenant.

4 Simulating RLS in R

# Simulate the multi-tenant data store in R
all_observations <- data.frame(
  tenant_id   = c(rep("dept_a", 5), rep("dept_b", 5), rep("dept_c", 5)),
  date        = rep(Sys.Date() - 4:0, 3),
  location_id = c(rep("loc_1", 5), rep("loc_2", 5), rep("loc_3", 5)),
  new_cases   = c(rpois(5, 45), rpois(5, 80), rpois(5, 30))
)

# Simulate the RLS filter — what each tenant sees
query_as_tenant <- function(data, tenant) {
  data[data$tenant_id == tenant, setdiff(names(data), "tenant_id")]
}

# Each department sees only its own data
cat("dept_a sees:\n"); print(query_as_tenant(all_observations, "dept_a"))

dept_a sees:

        date location_id new_cases
1 2026-04-18       loc_1        53
2 2026-04-19       loc_1        37
3 2026-04-20       loc_1        37
4 2026-04-21       loc_1        53
5 2026-04-22       loc_1        49

cat("\ndept_b sees:\n"); print(query_as_tenant(all_observations, "dept_b"))


dept_b sees:

         date location_id new_cases
6  2026-04-18       loc_2        73
7  2026-04-19       loc_2        78
8  2026-04-20       loc_2        67
9  2026-04-21       loc_2        94
10 2026-04-22       loc_2        92

library(ggplot2)
library(dplyr)

# Show what an admin (all-tenant) view looks like
all_observations |>
  ggplot(aes(x = date, y = new_cases, colour = tenant_id, group = tenant_id)) +
  geom_line(linewidth = 1.2) +
  geom_point(size = 2) +
  scale_colour_manual(values = c(dept_a = "steelblue",
                                  dept_b = "firebrick",
                                  dept_c = "darkgreen"),
                      name = "Tenant") +
  labs(x = NULL, y = "Daily cases",
       title = "Shared table — admin view across all tenants",
       subtitle = "Each tenant's session sees only their own row via RLS") +
  theme_minimal(base_size = 13)

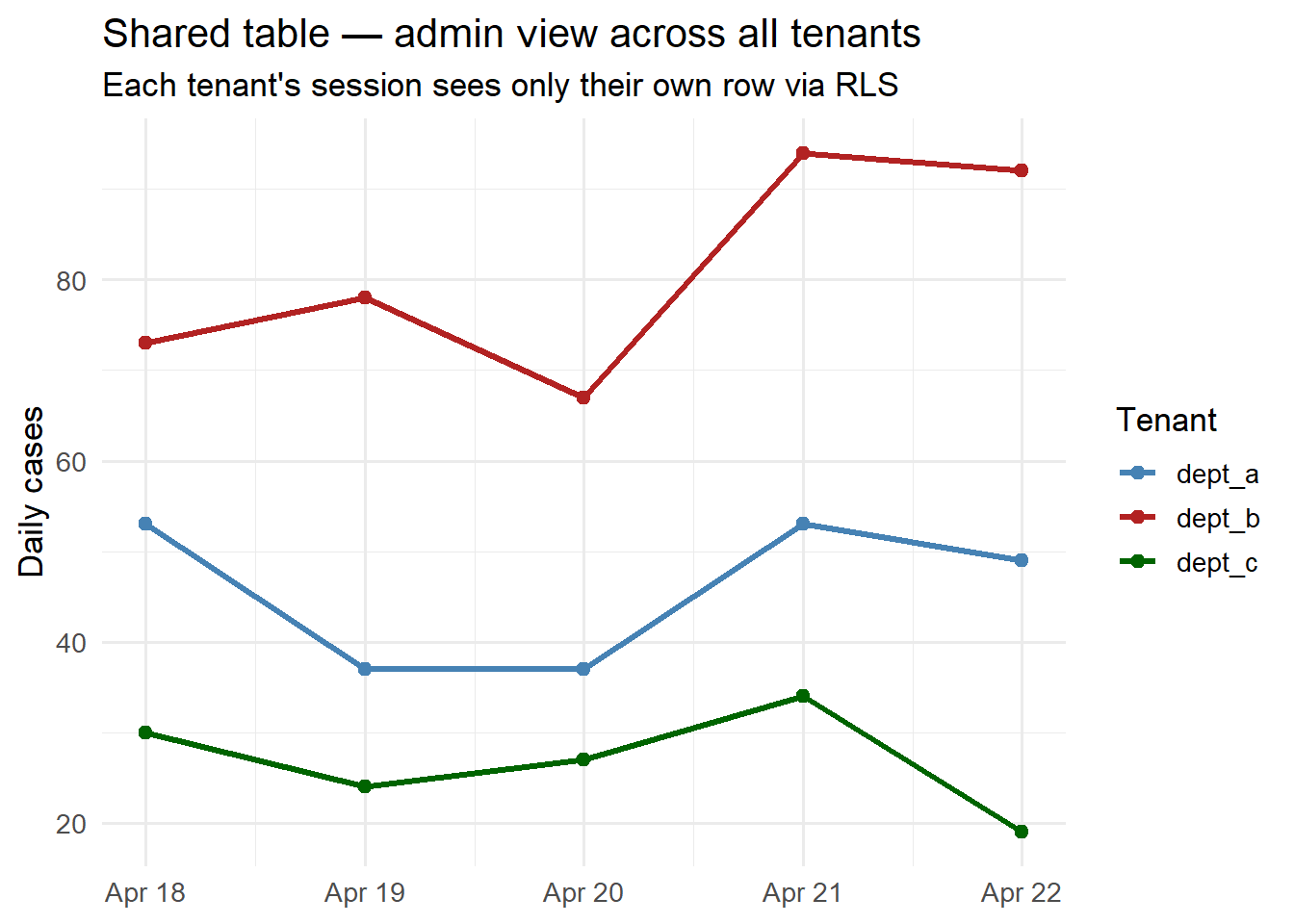

Per-tenant case counts in a shared multi-tenant store. RLS ensures dept_a never sees dept_b’s data, even though they share the same physical table.

5 Tenant onboarding workflow

When a new health department signs a contract, the onboarding script does:

onboard_tenant <- function(con, tenant_id, contact_email) {
  # 1. Insert tenant record
  DBI::dbExecute(con,
    "INSERT INTO tenants (tenant_id, contact_email, created_at)
     VALUES ($1, $2, NOW())",
    params = list(tenant_id, contact_email)
  )

  # 2. Create API key (hashed)
  raw_key   <- paste0(sample(c(letters, 0:9), 32, replace=TRUE), collapse="")
  key_hash  <- digest::digest(raw_key, algo = "sha256")
  DBI::dbExecute(con,
    "INSERT INTO api_keys (tenant_id, key_hash, created_at)
     VALUES ($1, $2, NOW())",
    params = list(tenant_id, key_hash)
  )

  # 3. Seed initial model state
  # ... insert baseline EnKF posterior for this tenant

  message(sprintf("Tenant '%s' onboarded. API key: %s", tenant_id, raw_key))
  raw_key   # return only once; never stored in plaintext
}

The key rule: the raw API key is shown only at creation and never stored — only its hash is in the database, like a password.

6 Cost attribution

With shared infrastructure, you need to attribute costs to tenants for:

Usage-based billing: charge by API call, EnKF run, or data stored
Resource planning: identify which tenants drive the most compute

Add a usage_events table:

CREATE TABLE usage_events (
  tenant_id    TEXT        NOT NULL,
  event_type   TEXT        NOT NULL,  -- 'api_call', 'enkf_run', 'report_gen'
  occurred_at  TIMESTAMPTZ NOT NULL DEFAULT NOW(),
  duration_ms  INTEGER,
  cost_units   NUMERIC     -- whatever unit you bill in
);
SELECT create_hypertable('usage_events', 'occurred_at');

Monthly billing is then a simple aggregate query per tenant.

7 References

Guo CJ, Sun W, Huang Y, Wang ZH, Gao B. A framework for native multi-tenancy application development and management. Proceedings of the 9th IEEE International Conference on E-Commerce Technology. 2007;551–8. doi:10.1109/CEC.2007.25

Fowler M. Patterns of enterprise application architecture. Boston, MA: Addison-Wesley; 2002.
